TRV

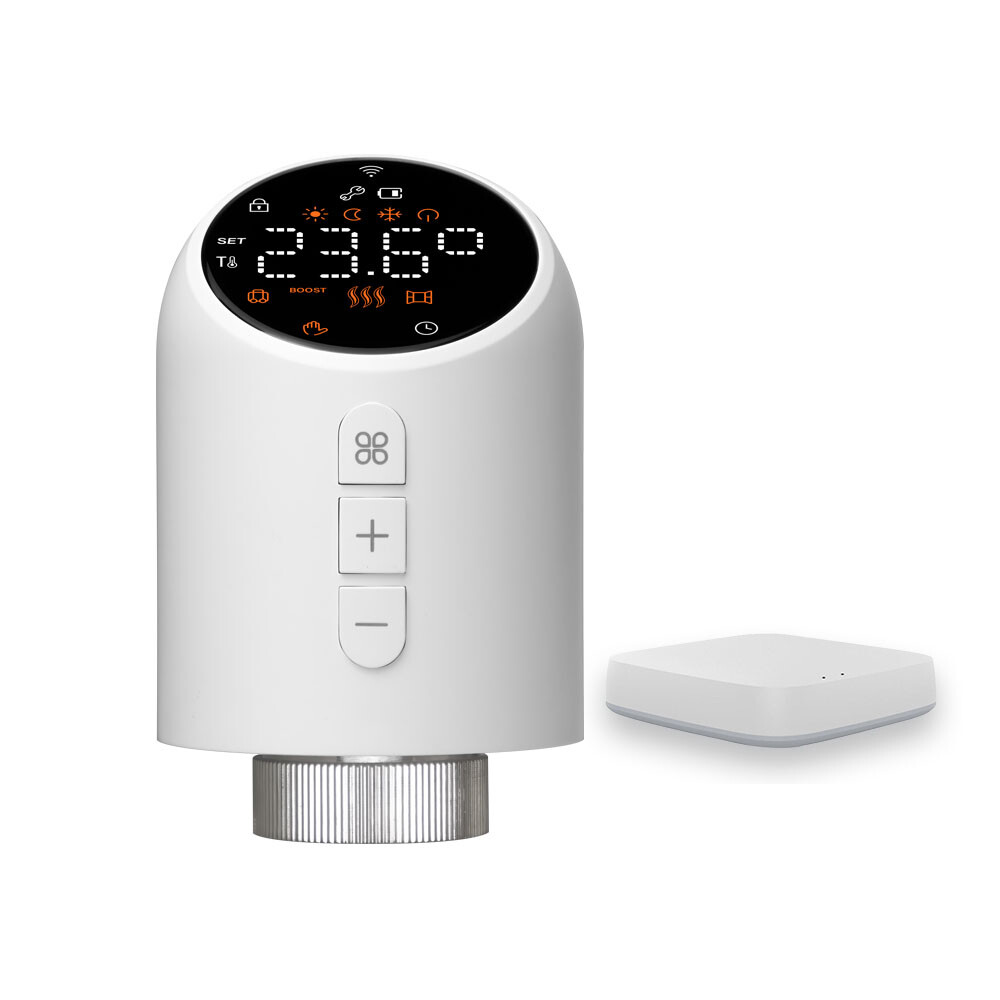

TRV-705ZB

About this item

• Room Thermostatic Radiator Valve

• Supply: Battery Powered

• Load Current: 6uM Min

• Connection: M30*1.5 mm

• Linear Travel: 6 mm

• Color: White

• Protective Class: IP20

• Sensor: NTC


Video




Technical Data


Model Name
TRV-705ZB
Power3*1.5V AA Batteries
Standby Current6uM Min
Operating Temp.0~50℃ indoor using only
Storge Temp.-20~70℃
Protective ClassIP20
Surface Temperature90℃ Max
ConnectionM30*1.5mm
SensorNTC
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


TRV-705ZBTRV-705WF
3*1.5V AA Batteries3*1.5V AA Batteries
6uM Min6uM Min
Zigbee Remote ControlWifi Remote Control

√ APP Control

 √ APP Control
M30*1.5mmM30*1.5mm
WhiteWhite



Product Display


The special design zigbee smart home radiator valves TRV-705ZB is mainly used for room radiator heating. It can control the room temperature by control the hot water volum that flow into the radiator.The TRV can monitor and adjust the room temperature timely to realize the energy saving purpose. The TRV-705ZB TRV is an smart Zigbee WiFi control type thermal radiator valve so it can be controlled by phone.


This TRV-705ZB thermal radiator valve is an easy installation valves for radiators.It has 6 adaptors that makes it suitable for most valve bodies.Therefore, this is a thermostatic valve product with high practicality and adaptability.


705海报


Real Photos Display

TRV-705


TRV-705-01


TRV-705-02


TRV-705-03



Product Functions


705



App Control


TRV-705ZB works with Tuya app and Smart Life app, you can control it via phone anywhere and anytime.


H895f9e35a45147a1837de962630bb7c7f



Temperature can be recorded and viewed


Beok TRV-705 series smart radiator thermostat can record the room temperature and setting temperature, then user can view the working status of this device.

H1d55eaa126c44d0ca73c44560a137b12O



Daily Programmable


The daily programming function can set the temperature at different times.


Specifications & Contents


Hb2a0d8401afc40ae99c9dcf43c2fae9cO






The dimensions of the TRV-705ZB are 59.4*95.3 mm.



The standard package of the TRV-705ZB thermostatic radiator valve includes the following accessories:



Thermostatic Radiator Valve

Instruction

Adaptor Pack


FAQS


1. Q: Can I control multiple Zigbee TRVs individually or in groups?

   A: Yes, most Zigbee TRVs support both individual and group control. You can set unique temperatures for each radiator via the app, or create groups (e.g., “Living Room” or “Upstairs”) to adjust multiple valves simultaneously for consistent comfort.


2. Q: Why is my Zigbee TRV not responding to app commands?

    A: Common reasons include weak Zigbee signal (move the hub closer or add a Zigbee repeater), dead batteries, or lost pairing. Check signal strength in the app, replace batteries, and re-pair the valve with the hub if the connection drops.


3. Q: Can a Zigbee TRV work without internet, and does it support scheduling?

    A: It works locally with a Zigbee hub (no internet needed) for basic temperature control and pre-set schedules. Internet access is only required for remote control via smartphone, voice commands, or syncing with weather data for adaptive heating.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
