Gas Boiler Thermostat
BOT-R5X

About this item

• To Control Gas Boiler

• Supply: 3 x AAA Batteries / USB Type-C

• Load Current: 3A

• Sensor: Only Internal Air Sensor

• Connection: Wireless

• Programmable: Daily Programmable

• Mounting Type: Desk Stand

• Color: Black

• Dimensions: 86x86x20 mm



Video




Technical Data


Model Name
BOT-R5X
Power3 x AAA Batteries / USB Type-C
Temperature Precision±0.5℃
Temperature Range5℃~60 ℃
Temperature Calibration-9.9℃~9.9℃
Temperature Hysteresis0.5℃~10℃
Temperature SensorNTC
Load Current3A (resistant)
Self-consumption Power<170 μW
Programmable functionDaily Program
Temperature SensorInternal Air Sensor
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec


BOT-R5WBOT-R5W-WIFIBOT-R5XBOT-R5X-WIFI
3 x AAA Batteries / USB Type-C3 x AAA Batteries / USB Type-C3 x AAA Batteries / USB Type-C3 x AAA Batteries / USB Type-C
3A3A3A3A
Gas Boiler HeatingGas Boiler HeatingGas Boiler HeatingGas Boiler Heating

× Wireless

× Wireless √ Wireless  √ Wireless

× APP Control

 √ APP Control

× APP Control

 √ APP Control
 √ Air Sensor  √ Air Sensor √ Air Sensor  √ Air Sensor
× Floor Sensor× Floor Sensor× Floor Sensor× Floor Sensor
Surface MountingSurface MountingDesk StandDesk Stand
White / BlackWhite / BlackWhite / BlackWhite / Black



Product Display


BOT-R5X is not only smart and easy to operate but also boasts powerful temperature control functions. It supports both cooling and heating control, allowing easy switching between cooling and heating modes to meet your comfort needs in different seasons throughout the year. What's more noteworthy is its daily programming function. You can personalizedly set temperature plans for multiple time periods in a day according to your specific living habits on weekdays and weekends, achieving intelligent energy savings and truly making your life more convenient while reducing electricity consumption.


R5X


Real Photos Display

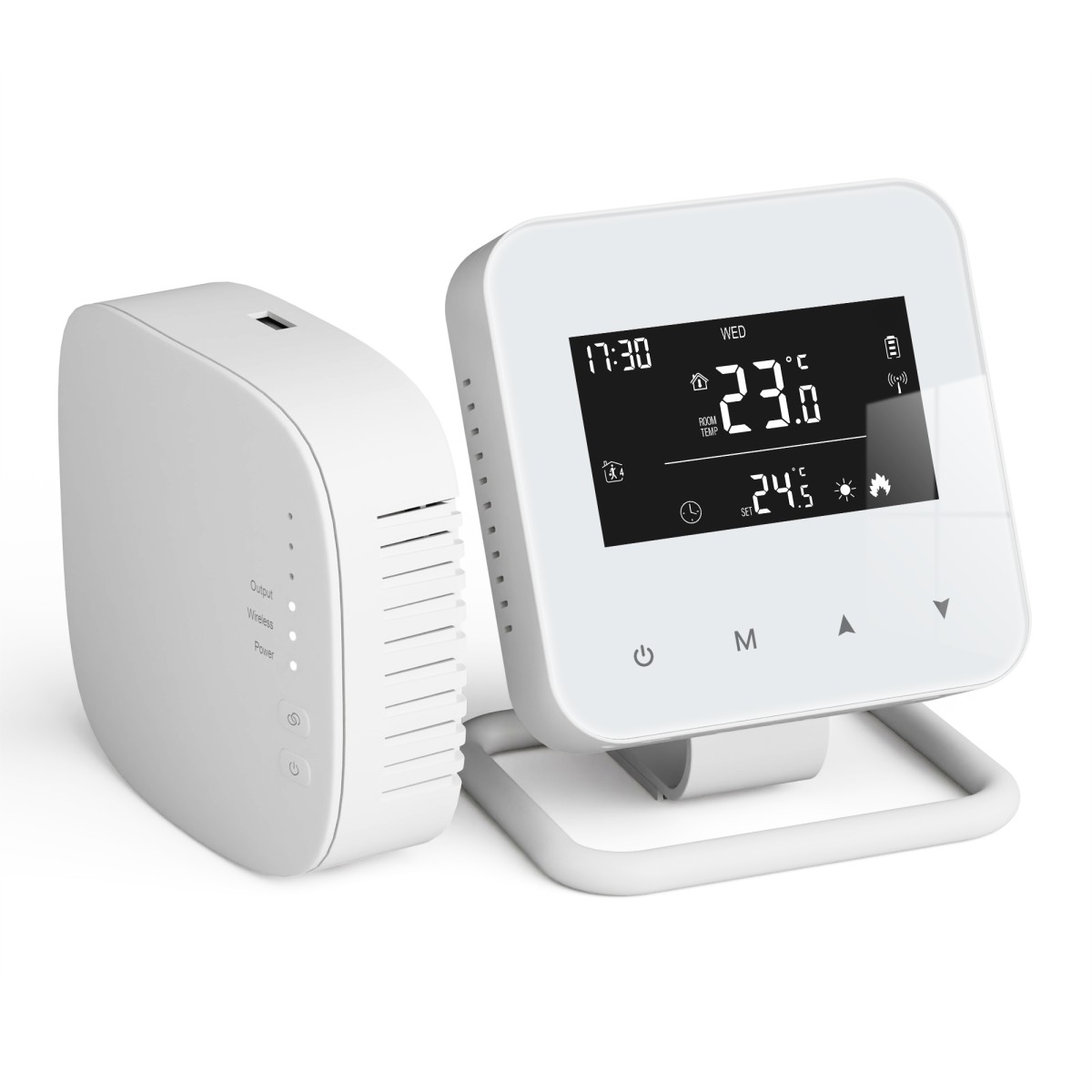

r5x 01






S08-2






16-5






16-4






Product Functions


R5X-table-n-wall

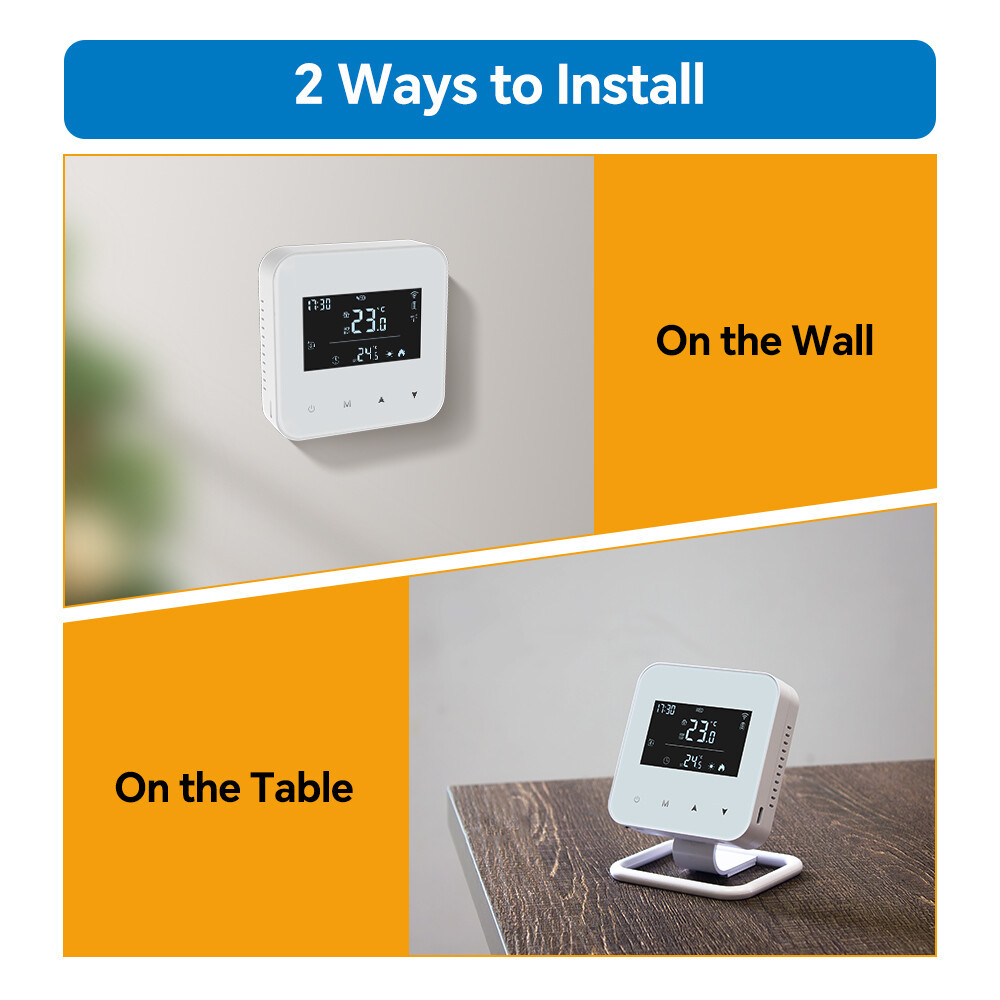

Two Installation Methods


BOT-R5X thermostat offers two installation options. You can mount it on the wall or place it on a table, providing flexibility to suit different usage scenarios.



R5X-heating-cooling



Heating & Cooling


The BOT-R5X supports heating and cooling modes.


R5W-daily-program

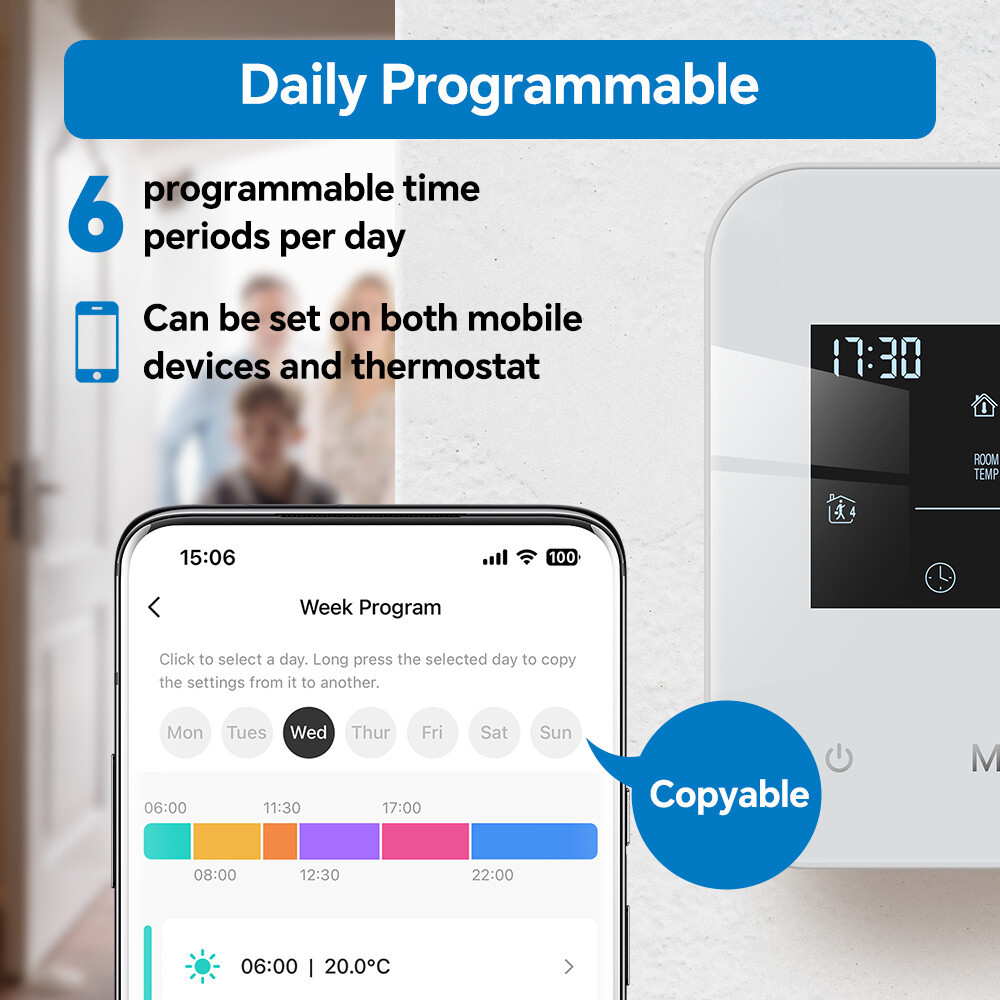

Daily Programmable


The daily programming function can set the temperature at different times.

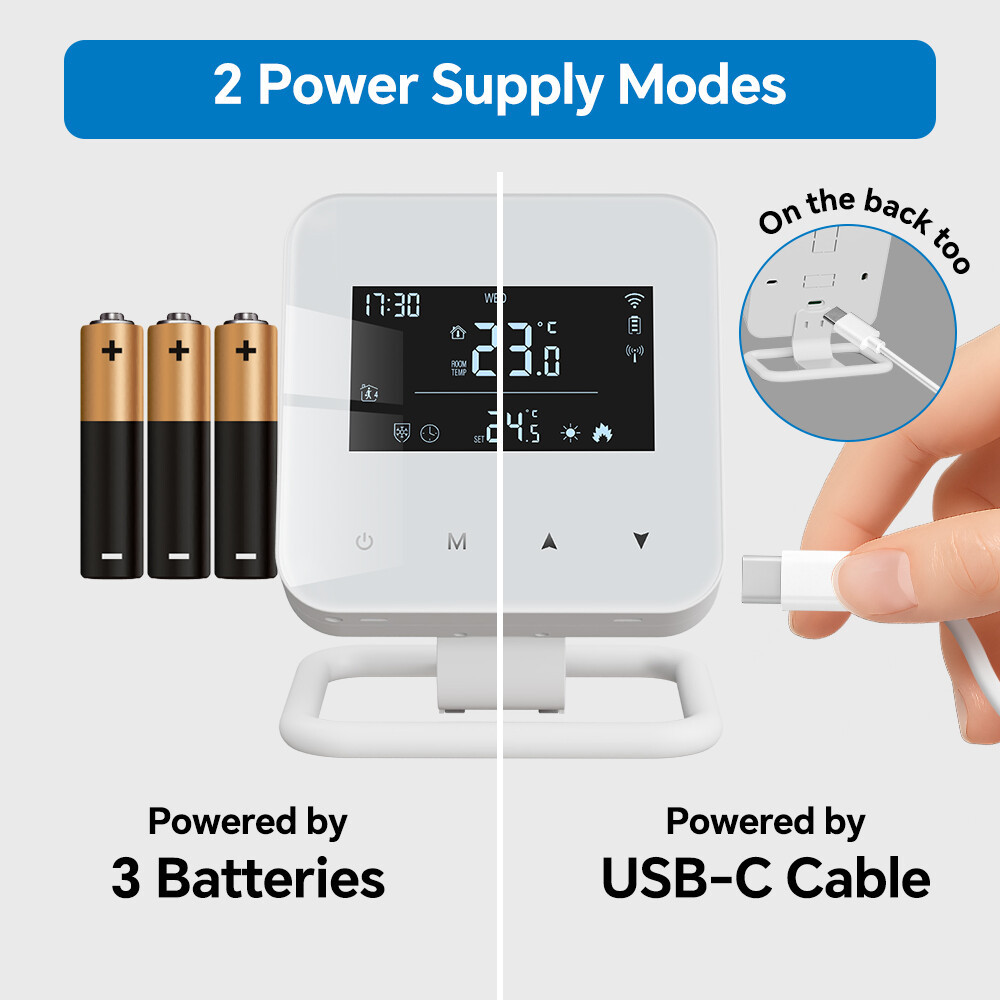

R5X-power-supply






Battery & USB Powered


The BOT-R5X is a wall-mounted thermostat specifically designed for gas-fired wall-hung boilers.



This thermostat supports two power supply modes: Battery power and USB power. For battery power supply, it requires 3 high-quality alkaline batteries.



It is important to note that battery quality directly affects the product's service life: inferior batteries may shorten the device's battery usage cycle and even cause unstable functional operation. Therefore, when using battery power supply, it is recommended to prioritize the use of high-quality batteries to ensure the continuous and stable operation of the thermostat.


Specifications & Contents

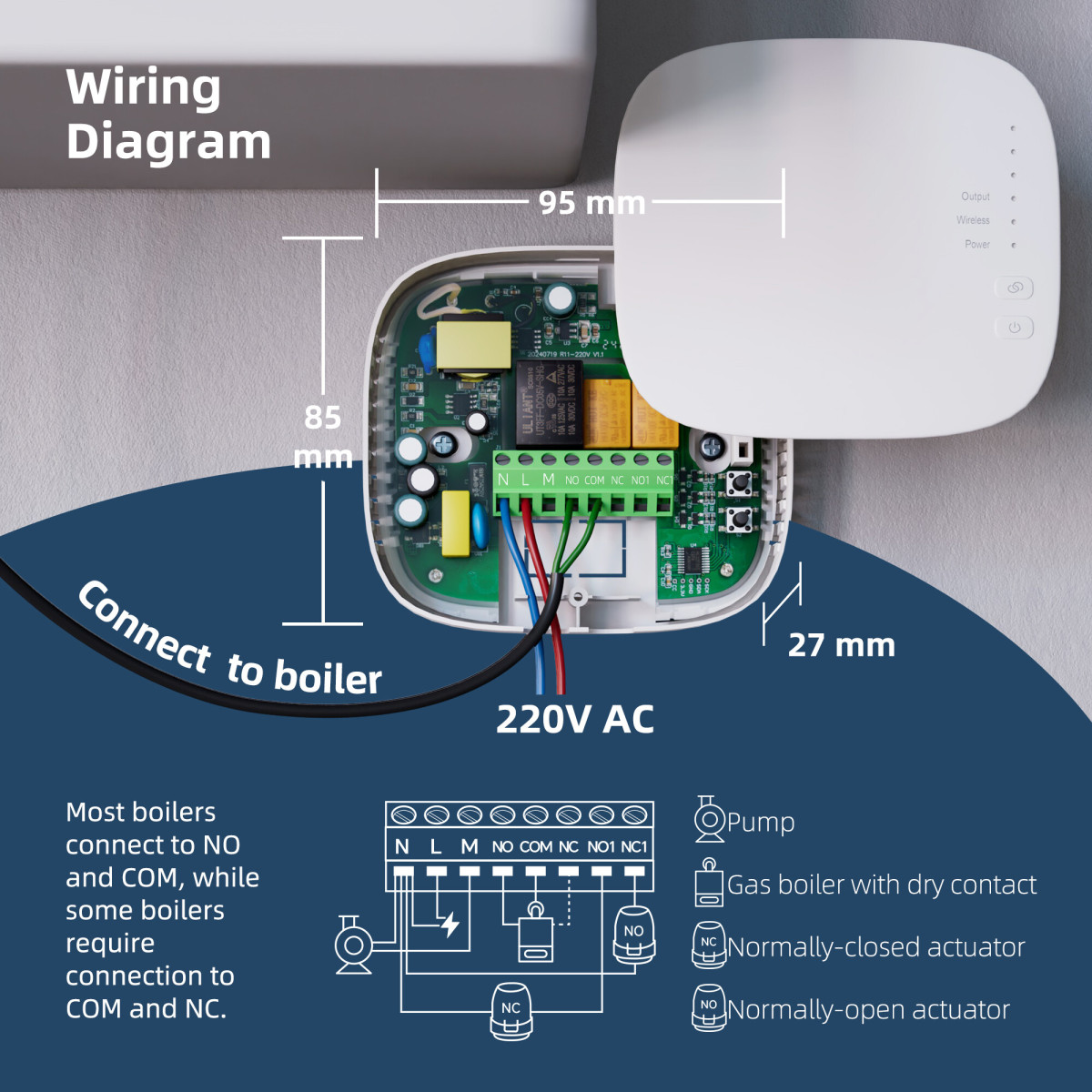

05-2000x2000-EN






During the installation of the thermostat, please pay special attention when using a screwdriver:

Be sure to select a screwdriver that matches the specifications of the screws. When turning the screws, apply moderate force and move gently.



If excessive force is used, it may not only cause the screws to strip or the housing to be scratched, but also damage the internal precision components.



This can lead to malfunctions of the thermostat, render it unable to work properly, and affect the subsequent temperature control performance.

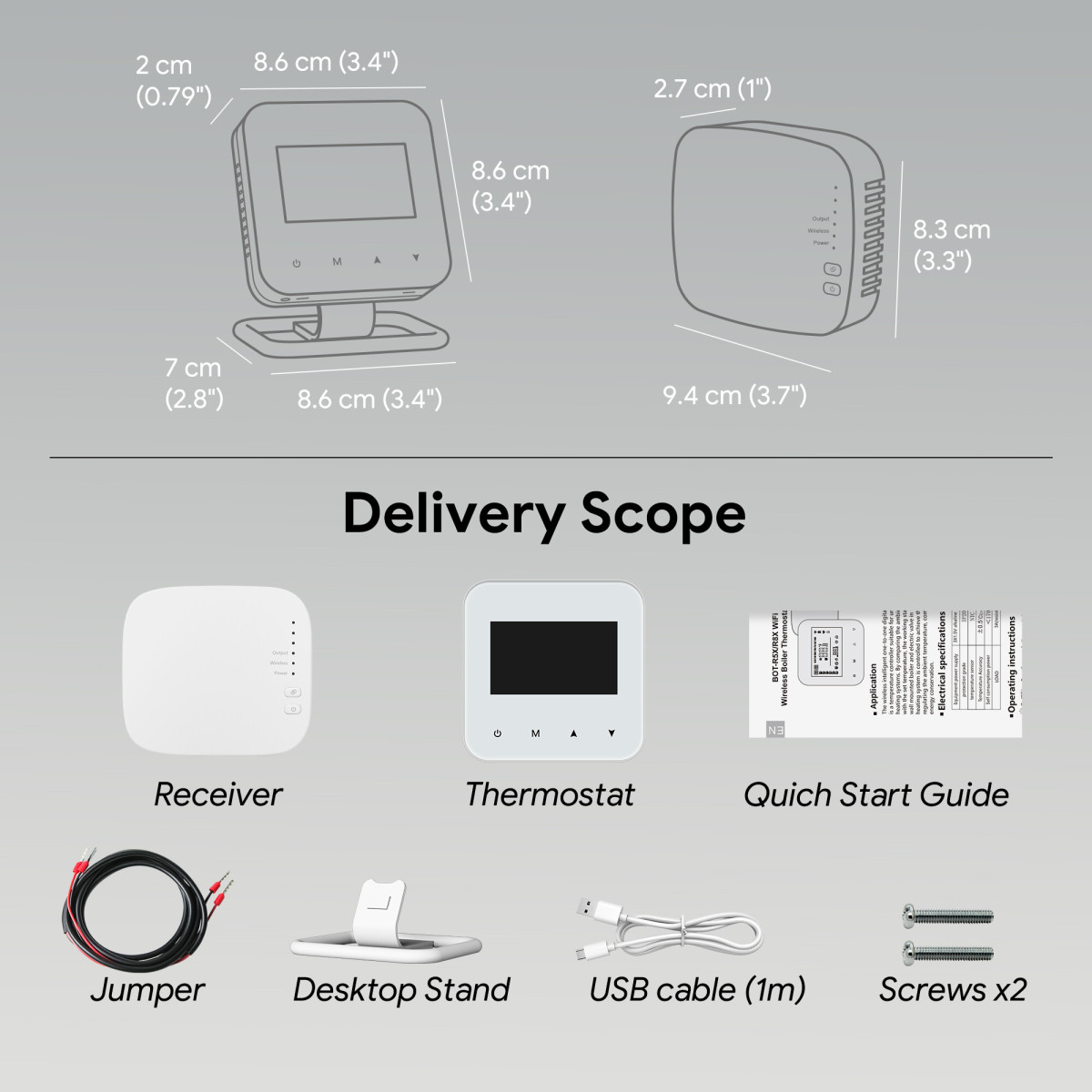

06-EN






The dimensions of the BOT-R5X are 86*86*20 mm.


Its center hole spacing is 60 mm.


The standard package of the BOT-R5X thermostat includes the following accessories:

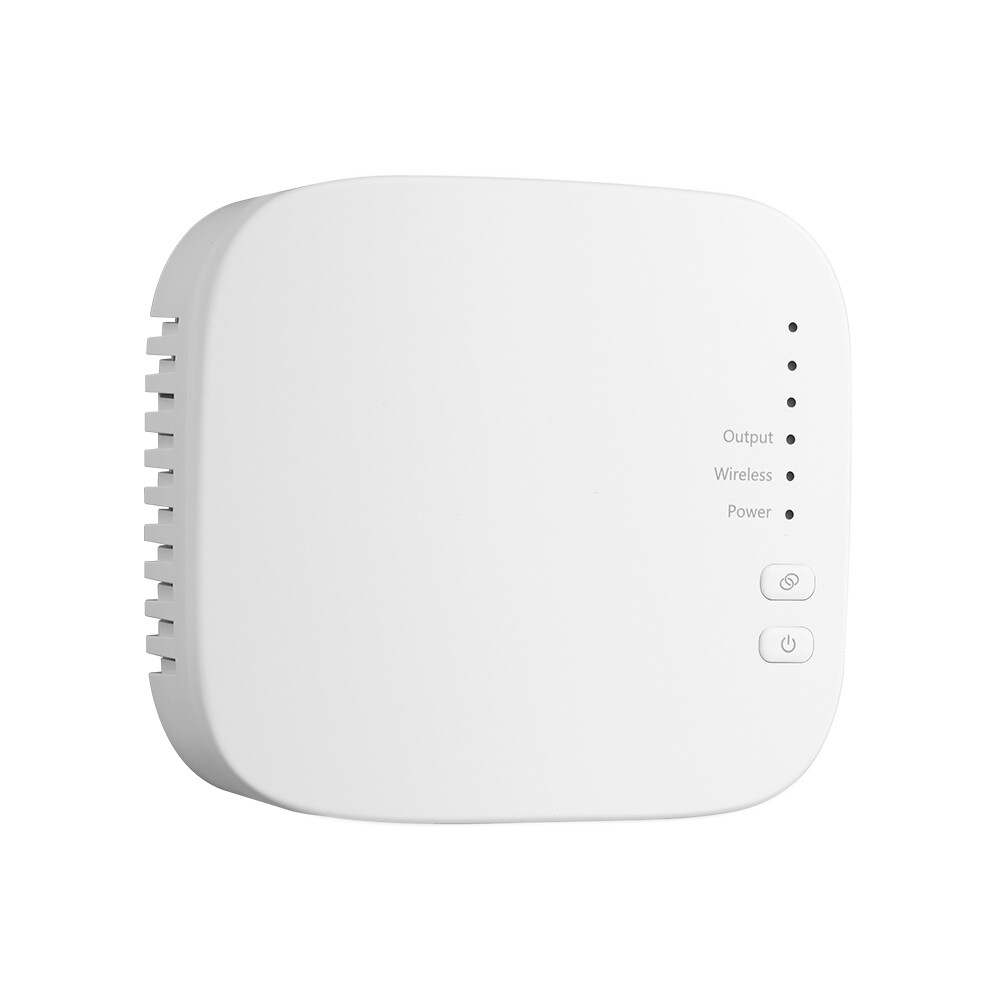

1 Receiver

1 Thermostat

1 Quich Start Guide

1 Jumper

1 Desktop Stand

1 USB cable (1m)

2 Screws

FAQS


1. Q: Can I install this thermostat by myself? Do I need to hire an electrician?

   A: Regarding the installation of the thermostat, we first recommend that you operate in strict accordance with the steps in the product manual under the guidance of professionals to ensure standardized installation and stable subsequent operation of the device. If you choose to install it yourself, you must carefully read the manual in advance, fully master the installation process, wiring requirements and safety precautions before starting the operation, so as to avoid affecting the device's function or causing potential safety hazards due to improper operation.


2. Q: If I use both battery power and USB power at the same time, which power supply method takes priority?

    A: If you have installed batteries and connected a USB cable at the same time, this thermostat is set to prioritize the USB power supply mode by default, in order to effectively reduce battery power consumption and extend the battery's service life.


3. Q: Is this thermostat compatible with gas boilers of other brands?

    A: This thermostat is currently compatible with gas boilers of most brands. However, there are numerous brands and models of gas boilers available on the market, and the wiring specifications may vary between different products. To ensure accurate compatibility, we recommend that you first refer to the wiring diagram included with the product for verification. If you encounter any questions during the verification process or need to further confirm compatibility details, you may also contact your purchasing supplier or communicate directly with us through official customer service channels—we will provide you with professional compatibility guidance.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
