Gas Boiler Thermostat
BOT-R8X

About this item

• To Control Gas Boiler

• Supply: 3 x AAA Batteries / USB Type-C

• Load Current: 3A

• Sensor: Only Internal Air Sensor

• Connection: Wired

• Programmable: Daily Programmable

• Mounting Type: Desk Stand

• Color: White

• Dimensions: 85x85x20 mm



Video




Technical Data


Model Name
BOT-R8X
Power3 x AAA Batteries / USB Type-C
Temperature Precision±0.5℃
Temperature Range5℃~60 ℃
Temperature Calibration-9.9℃~9.9℃
Temperature Hysteresis0.5℃~10℃
Temperature SensorNTC
Load Current3A (resistant)
Self-consumption Power<170 μW
Programmable functionDaily Program
Temperature SensorInternal Air Sensor
CertificatesCE / RED/ ROHS
Warranty24 months



Model Spec

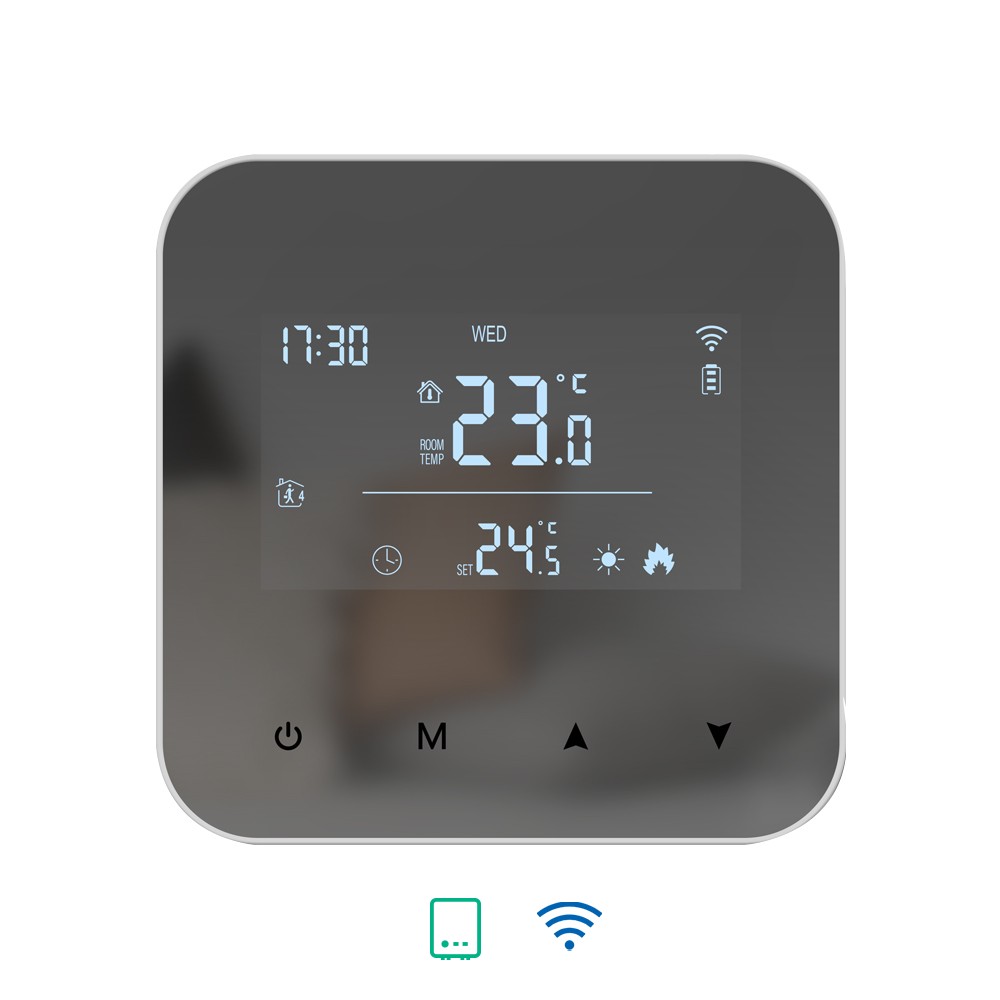

BOT-R8WBOT-R8W-WIFIBOT-R8XBOT-R8X-WIFI
3 x AAA Batteries / USB Type-C3 x AAA Batteries / USB Type-C3 x AAA Batteries / USB Type-C3 x AAA Batteries / USB Type-C
3A3A3A3A
Gas Boiler HeatingGas Boiler HeatingGas Boiler HeatingGas Boiler Heating

× Wireless

× Wireless √ Wireless  √ Wireless

× APP Control

 √ APP Control

× APP Control

 √ APP Control
 √ Air Sensor  √ Air Sensor √ Air Sensor  √ Air Sensor
× Floor Sensor× Floor Sensor× Floor Sensor× Floor Sensor
Surface MountingSurface MountingDesk StandDesk Stand
WhiteWhiteWhiteWhite



Product Display

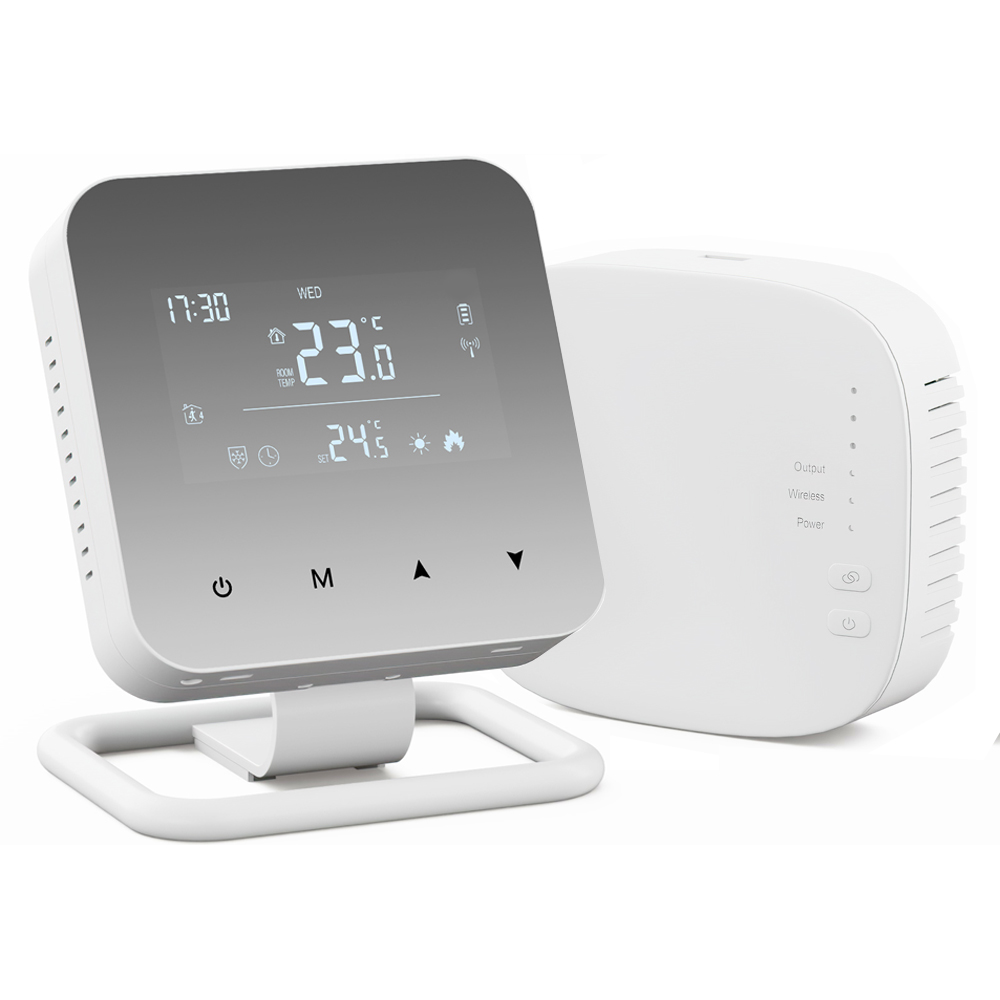

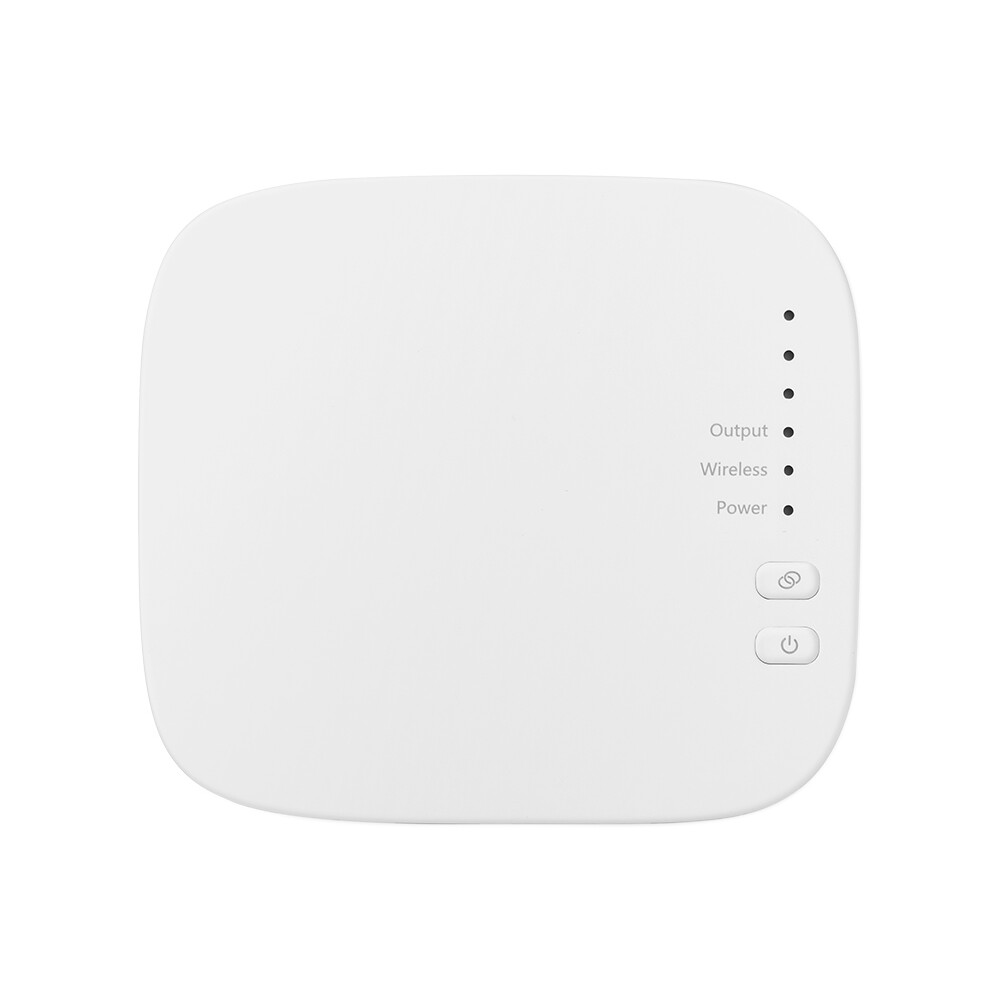

The BOT-R8X Wireless Boiler Thermostat is a modern smart home device. It usually consists of a wireless thermostat unit and a receiver/gateway. The thermostat unit can be placed anywhere convenient indoors, while the receiver is typically connected to the boiler.


This smart room thermostat features heating and cooling functions. It can monitor the indoor temperature in real-time through a temperature sensor. When the indoor temperature does not match the target temperature set by the user, the thermostat will issue commands to control external cooling or heating equipment to operate until the set temperature is reached.


R8X海报


Real Photos Display

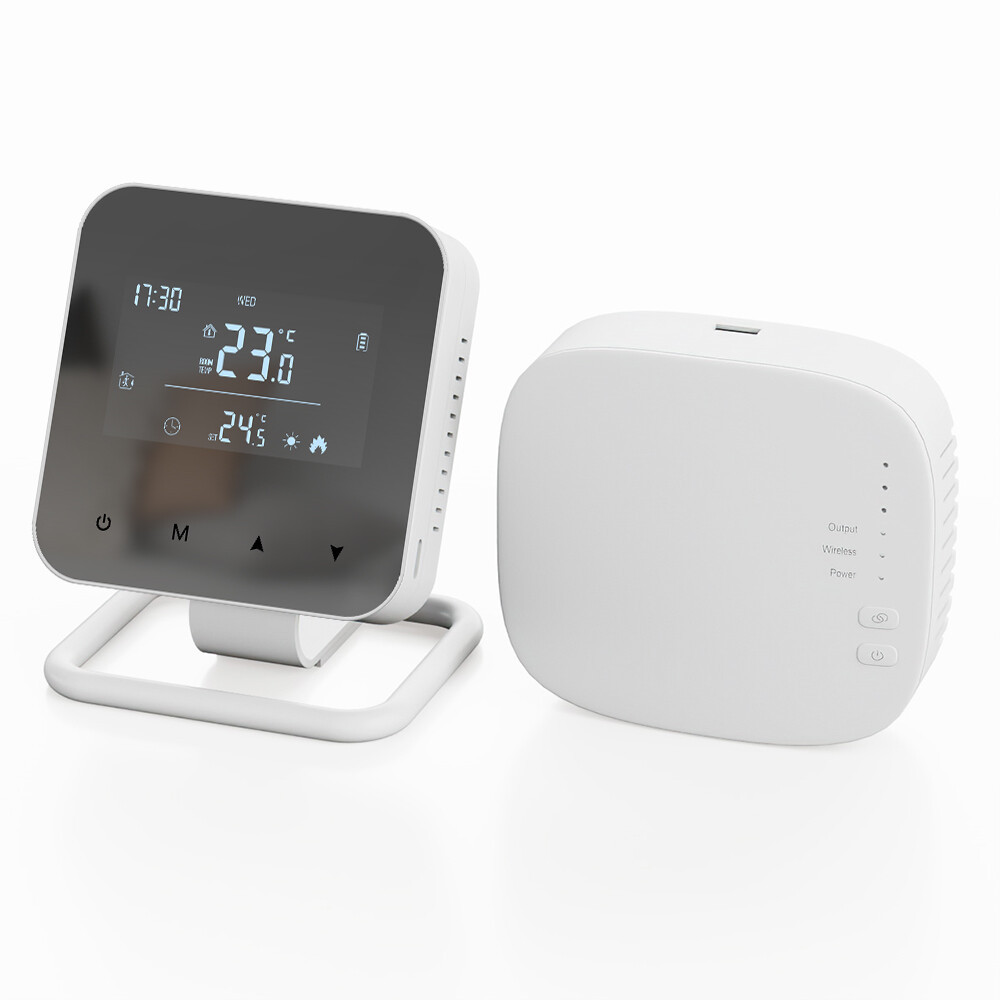

wireless gas boiler heating thermostat


S08-2


16-5


16-4


Product Functions


01

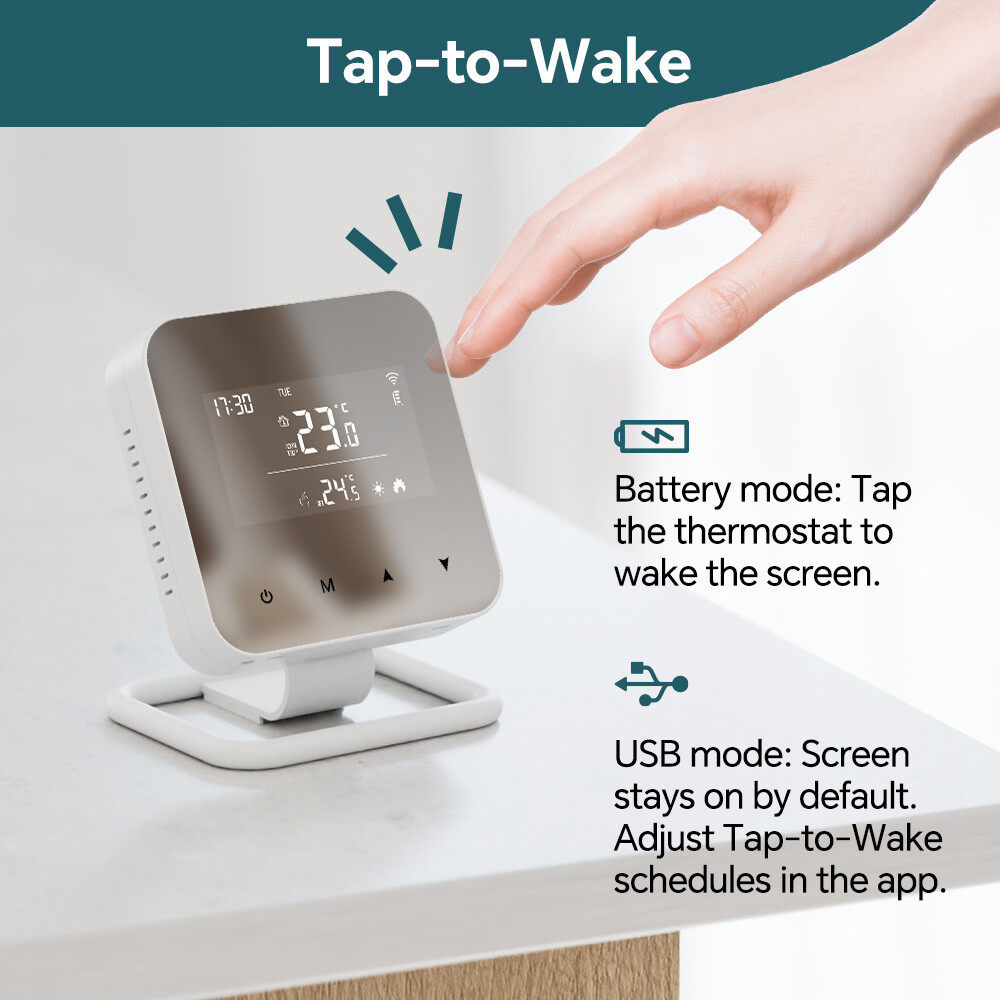

Tap-to-Wake


BOT-R8X thermostat features a tap-to-wake function. In battery mode, tapping the thermostat wakes the screen. In USB mode, the screen stays on by default, and you can adjust tap-to-wake schedules via the app.


05


Heating & Cooling


The BOT-R8X supports heating and cooling modes.



04


Daily Programmable


The daily programming function can set the temperature at different times.

06


Battery & USB Powered


The BOT-R8X is a wall-mounted thermostat specifically designed for gas-fired wall-hung boilers.


This thermostat supports two power supply modes: Battery power and USB power. For battery power supply, it requires 3 high-quality alkaline batteries.


It is important to note that battery quality directly affects the product's service life: inferior batteries may shorten the device's battery usage cycle and even cause unstable functional operation. Therefore, when using battery power supply, it is recommended to prioritize the use of high-quality batteries to ensure the continuous and stable operation of the thermostat.


Specifications & Contents

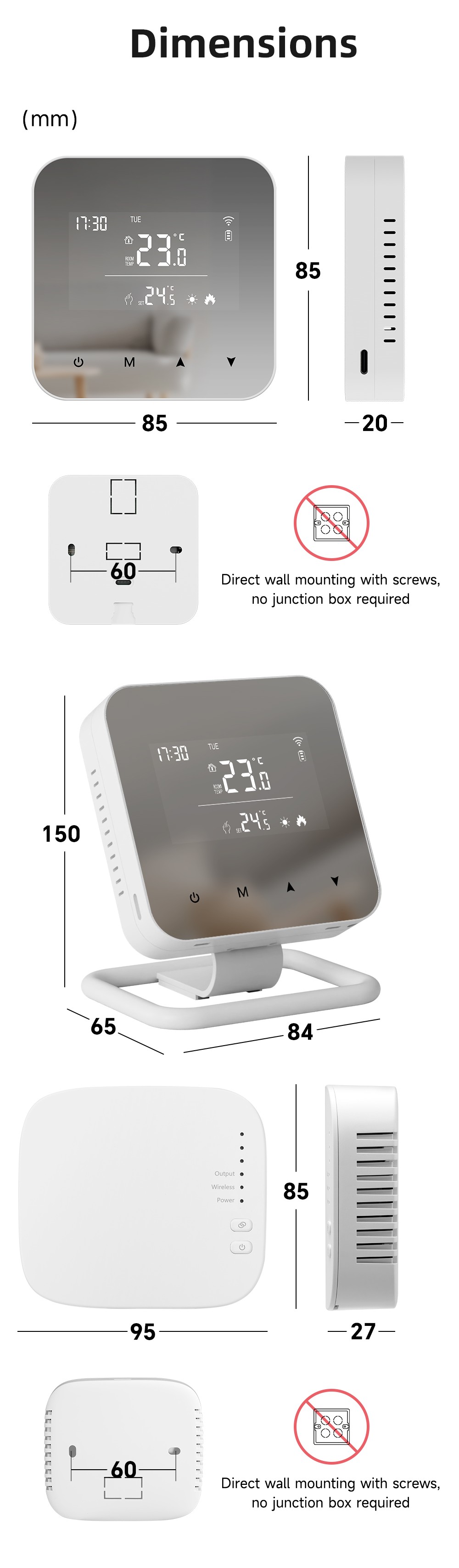

R8X尺寸


The dimensions of the BOT-R8X are 85*85*20 mm.

Its center hole spacing is 60 mm.

07


During the installation of the thermostat, please pay special attention when using a screwdriver:


Be sure to select a screwdriver that matches the specifications of the screws. When turning the screws, apply moderate force and move gently.


If excessive force is used, it may not only cause the screws to strip or the housing to be scratched, but also damage the internal precision components.


This can lead to malfunctions of the thermostat, render it unable to work properly, and affect the subsequent temperature control performance.

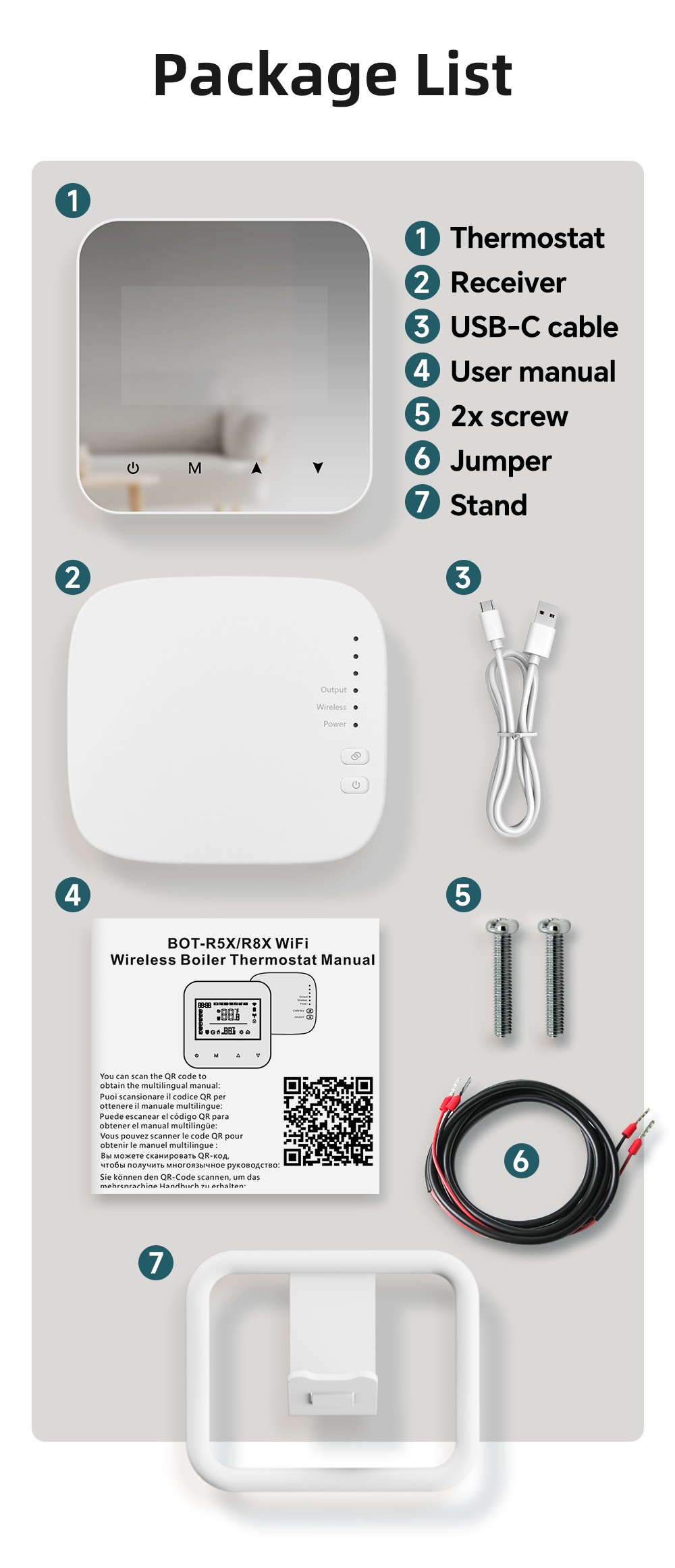

R8X包装


The standard package of the BOT-R8X thermostat includes the following accessories:


1 Thermostat

1 Receiver

1 USB-C cable

1 User manual

2 Screws

1 Jumper

1 Stand

FAQS


1. Q: Can I install this thermostat by myself? Do I need to hire an electrician?

   A: Regarding the installation of the thermostat, we first recommend that you operate in strict accordance with the steps in the product manual under the guidance of professionals to ensure standardized installation and stable subsequent operation of the device. If you choose to install it yourself, you must carefully read the manual in advance, fully master the installation process, wiring requirements and safety precautions before starting the operation, so as to avoid affecting the device's function or causing potential safety hazards due to improper operation.


2. Q: If I use both battery power and USB power at the same time, which power supply method takes priority?

    A: If you have installed batteries and connected a USB cable at the same time, this thermostat is set to prioritize the USB power supply mode by default, in order to effectively reduce battery power consumption and extend the battery's service life.


3. Q: Is this thermostat compatible with gas boilers of other brands?

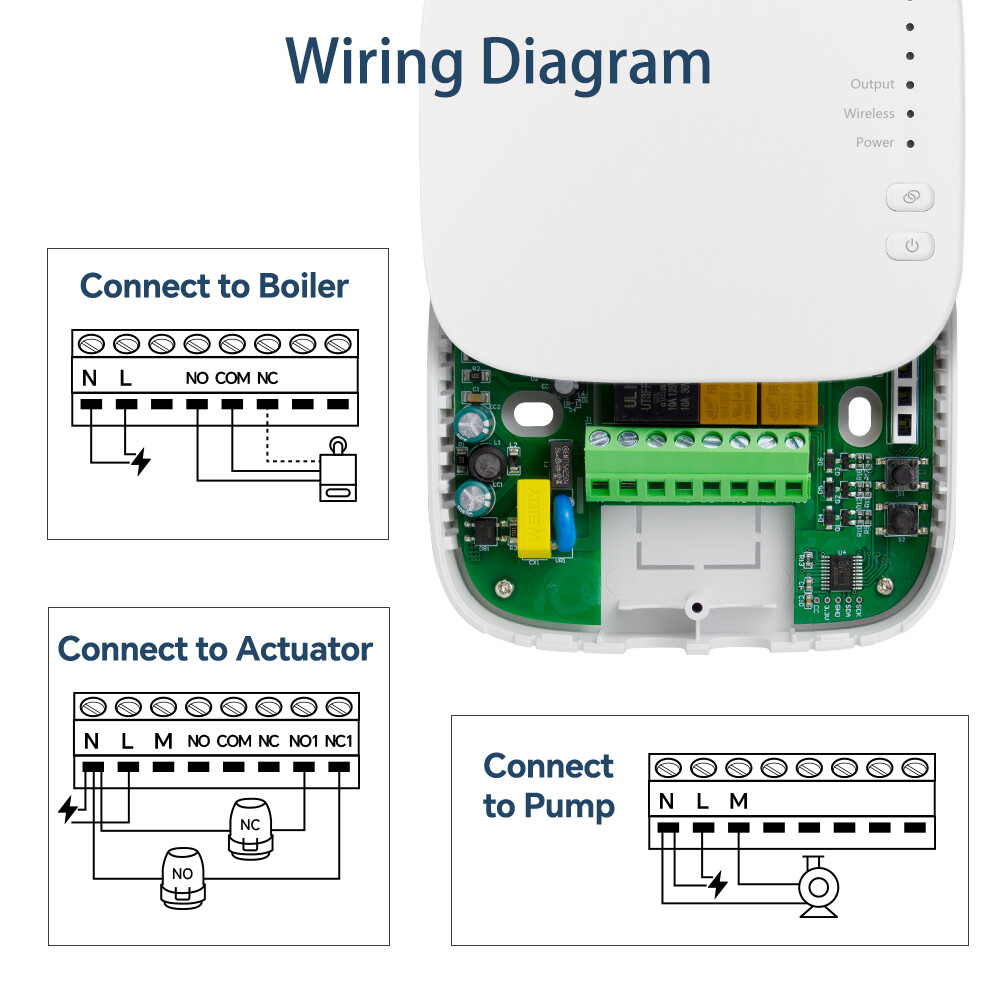

    A: This thermostat is currently compatible with gas boilers of most brands. However, there are numerous brands and models of gas boilers available on the market, and the wiring specifications may vary between different products. To ensure accurate compatibility, we recommend that you first refer to the wiring diagram included with the product for verification. If you encounter any questions during the verification process or need to further confirm compatibility details, you may also contact your purchasing supplier or communicate directly with us through official customer service channels—we will provide you with professional compatibility guidance.


4. Q: How long is the product warranty period?

    A: Our products come with a 2-year free warranty. If there is a quality issue (such as failure to turn on or unresponsive buttons) after you receive the goods, you can contact the after-sales customer service and provide the order number and photos of the problem. We will arrange for a replacement or repair.
