Water Floor Heating Thermostat

TDS21-WP

About this item

• To Control Water Floor

• Supply: AC100- 240V

• Load Current: 3A

• Sensor: Only Internal Air Sensor

• Connection: Wired

• Programmable: Weekly Programmable

• Mounting Type: Flush Mounting

• Color: White

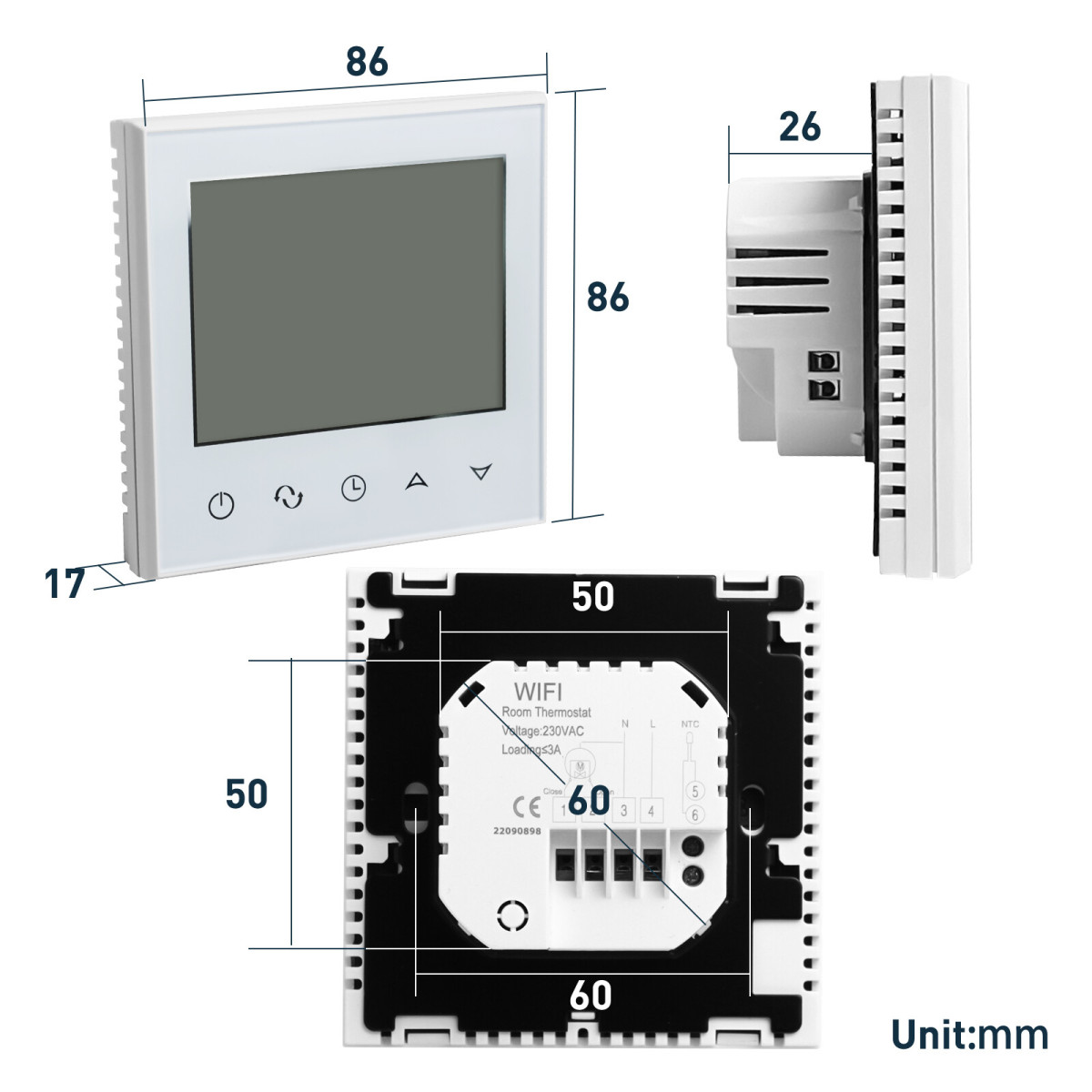

• Dimensions: 86x86x17 mm

Video

Technical Data

Instruction Manual

Model spec

Product Display

FAQ

Video

Technical Data

Model Name	TDS21-WP
Power	AC100- 240V, 50/ 60Hz
Temperature Precision	±0.5℃
Temperature Range	5℃~60 ℃
Temperature Calibration	-9.9℃~9.9℃
Temperature Hysteresis	0.5℃~10℃
Temperature Sensor	NTC
Load Current	3A (resistant)
Self-consumption Power	<170 μW
Programmable function	Weekly Program
Temperature Sensor	Internal Air Sensor
Certificates	CE / RED/ ROHS
Warranty	24 months

Instruction Manual

TDS21-WP Water Floor Heating Thermostat Manual.pdf

Model Spec

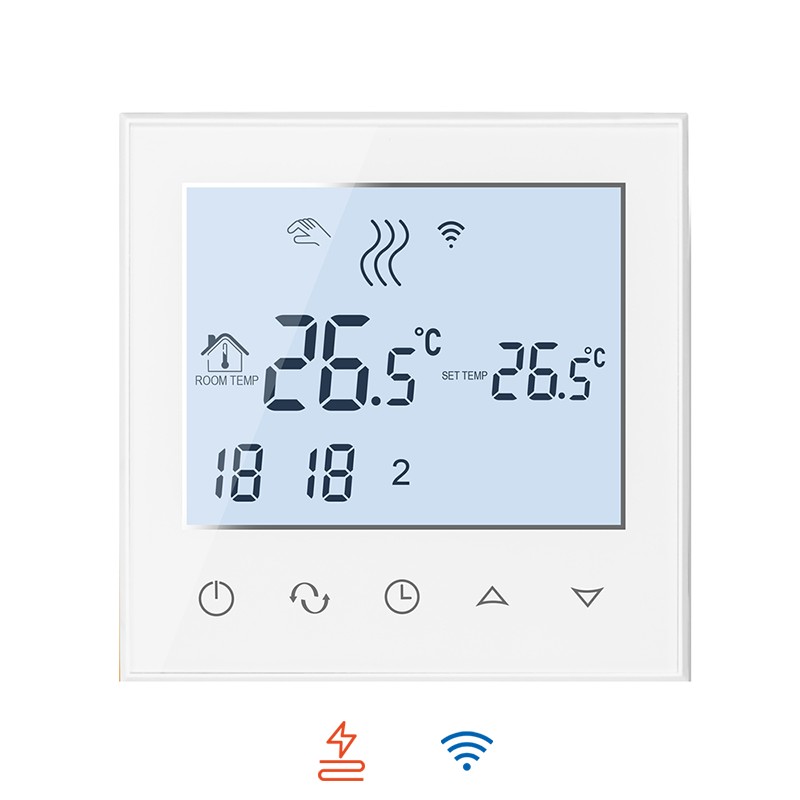

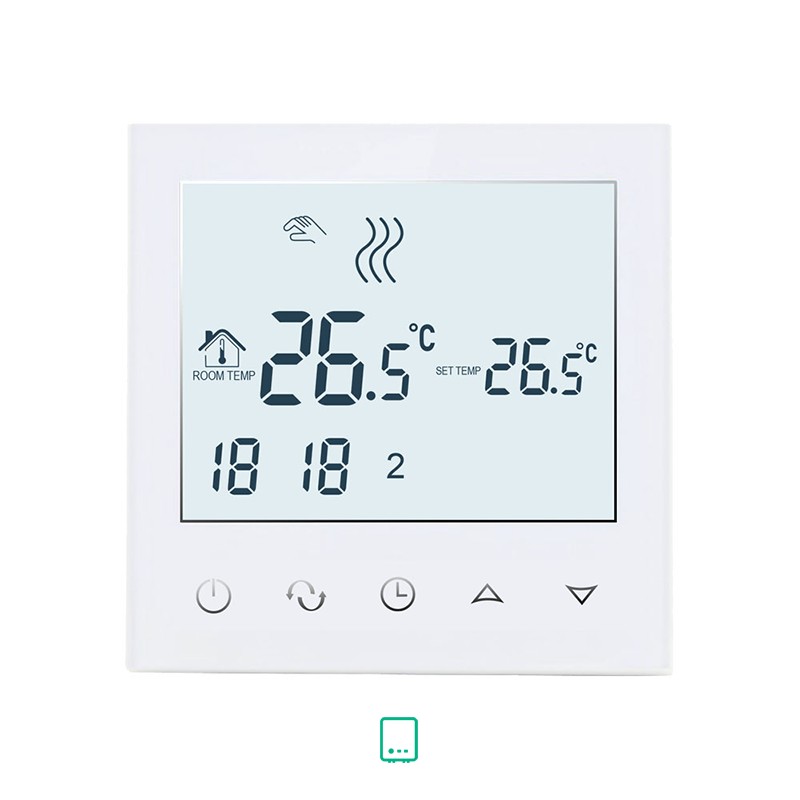

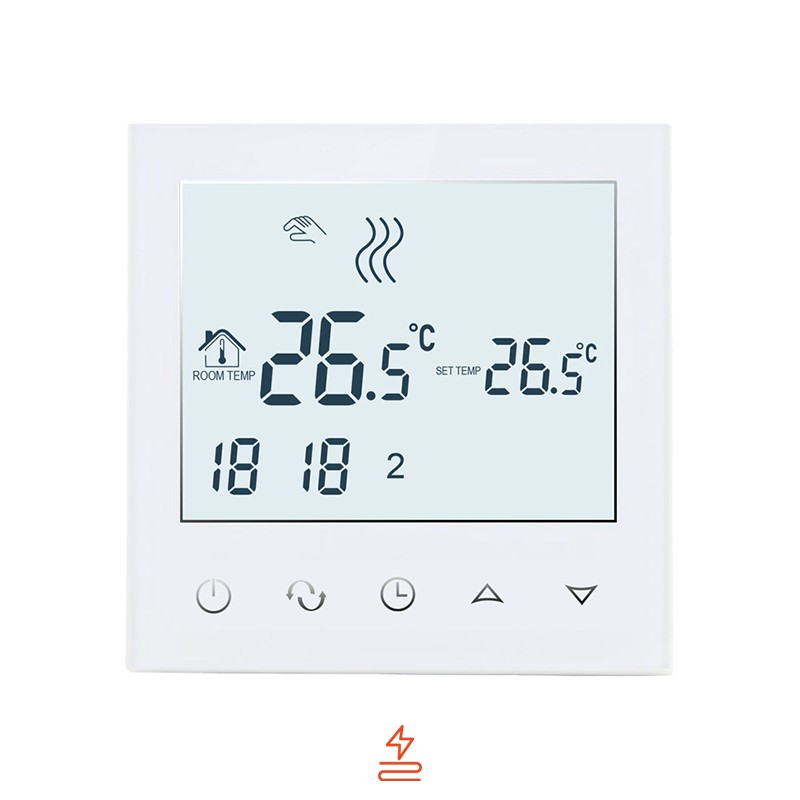

TDS21-EP	TDS21-WIFI-EP	TDS21-WP	TDS21-WIFI-WP	TDS21-WPB	TDS21-WIFI-WPB
AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
16A	16A	3A	3A	3A	3A
Electric Floor Heating	Electric Floor Heating	Water Floor Heating	Water Floor Heating	Gas Boiler Heating	Gas Boiler Heating
× APP Control	√ APP Control	× APP Control	√ APP Control	× APP Control	√ APP Control
√ Air Sensor	√ Air Sensor	√ Air Sensor	√ Air Sensor	√ Air Sensor	√ Air Sensor
√ Floor Sensor	√ Floor Sensor	× Floor Sensor	× Floor Sensor	× Floor Sensor	× Floor Sensor
White / Blue	White / Blue	White / Blue	White / Blue	White / Blue	White / Blue

Product Display

TDS21 Underfloor Thermostat is applied in Electrical or Water or Gas boiler Underfloor Heating System. TDS21-WP series thermostats are used to control 3A Water Floor Heating Elements

Underlfloor heating is to use electricity or water to achieve room underfloor central heating, is a kind heating way of transferring energy into heat energy to directly release heat to meet the central heating demand. Thermostat is the switch to realize intelligent temperature control. It can freely adjust the indoor temperature, and can be set on or off according to user requirements for a variety of time and a variety of preset mode of automatic operation to adjust the room temperature, so that it reaches a comfortable temperature.
